Produktdetails:
Zahlung und Versand AGB:
|
| Modellnummer: | GZP570 (61) | Maschinenmaterial: | Kohlenstoffstahl, Edelstahl |
|---|---|---|---|
| Zahlenstationen: | 61 | Max Hauptdruck: | 100kn |
| Max-Vordruck: | 40kn | Maximale Produktionskapazität: | 439200 PCs/h |
| Motorleistung: | 11 kW | Max -Tablettendurchmesser: | Runde Tablette: 13mm, unregelmäßiges Tablet: 16 mm |
| Maximale Tiefe: | 15 mm | Max -Tablet -Dicke: | 6 mm |
| Max Turmgeschwindigkeit: | 60 r/min | Gesamtgröße: | 1420*1200*1850 mm |
| Maschinengewicht: | 3500 kg | Werkzeugstandard: | BB |
| Turmmaterial: | HT300 & 2CR13 | ||
| Hervorheben: | GMP 21 CFR Part 11 High Speed Tablet Press,61 Stations Rotary Tablet Press Machine,439200 PCS/H Pharmaceutical Tablet Press |
||

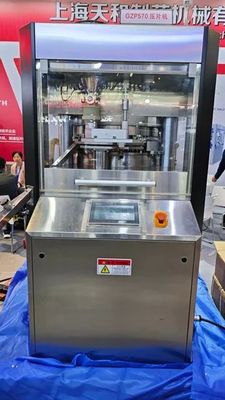

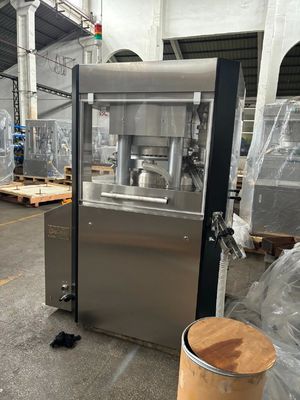

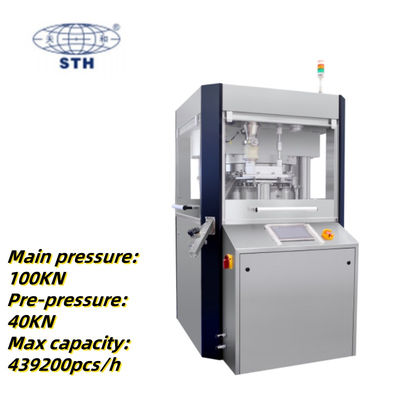

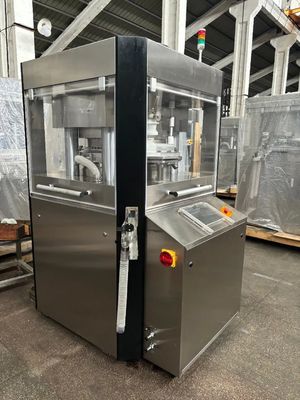

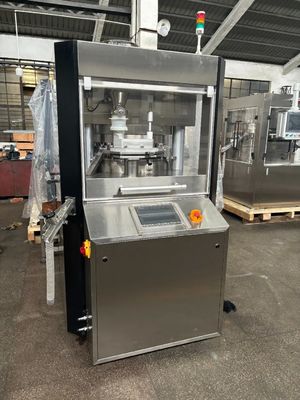

This double-side rotary tablet press machine transforms granular materials into round, irregular, or double-side engraved tablets. Ideal for pharmaceutical, chemical, foodstuff, and electronic industries.
| Model | GZP-61 |
|---|---|
| Number Stations | 61 |
| Tooling Standard | BB |
| Max Main Pressure (KN) | 100 |
| Max Pre-pressure (KN) | 40 |
| Max Tablet Diameter (mm) | Round Tablet: 13 | Irregular Tablet: 16 |
| Max Filling Depth (mm) | 15 |
| Max Tablet Thickness (mm) | 6 |
| Max Turret Speed (r/min) | 60 |
| Max Production Capacity (pcs/h) | 4,392,000 |
| Motor Power (kw) | 11 |
| Overall Size (mm) | 1420×1200×1850 |
| Machine Weight (kg) | 3500 |

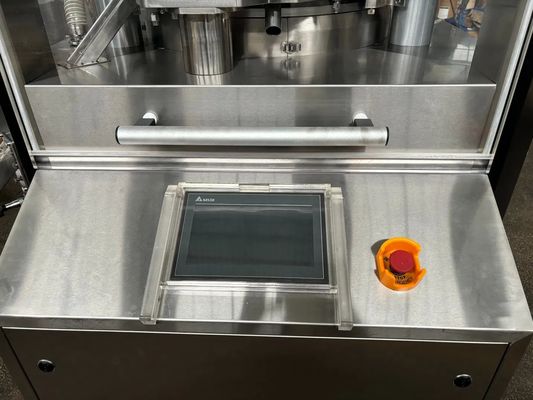

Handwheel-free control with automatic adjustment of main pressure, pre-pressure and filling volume via touch screen.
Features international brand components including Delta and Schneider.
11kw ABB motor with high-precision reducer for stable, high-torque power output.
Stable installation with double blade wheel feeding disc for excellent material adaptation and consistent powder filling.
