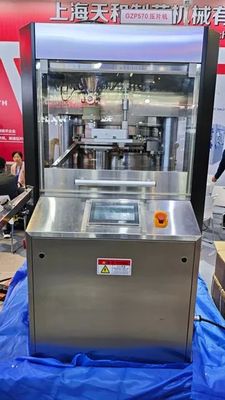

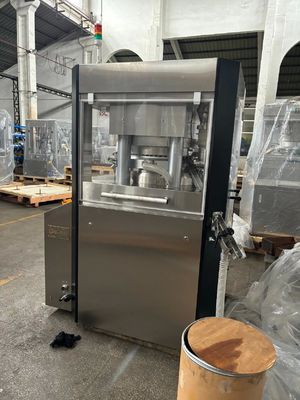

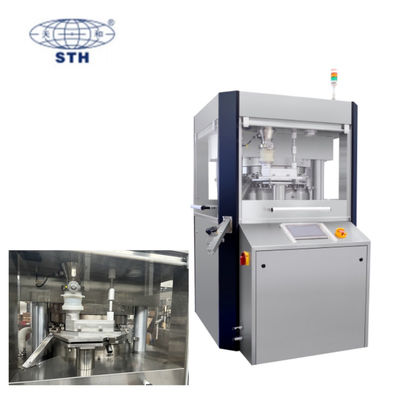

High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power

China High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power fournisseur
High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power fournisseur High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power fournisseur High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power fournisseur High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power fournisseur High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power fournisseur High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power fournisseur

Großes Bild :  High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power

Produktdetails:

Zertifizierung: CE, GMP, ISO, EAC

Zahlung und Versand AGB:

Min Bestellmenge: 1
Preis: 60000
Kontakt
Ausführliche Produkt-Beschreibung
Modellnummer: GZP570 (65) Maschinenmaterial: Kohlenstoffstahl, Edelstahl
Zahlenstationen: 65 Max Hauptdruck: 100kn
Max-Vordruck: 40kn Maximale Produktionskapazität: 468000 PCs/h
Motorleistung: 11 kW Max -Tablettendurchmesser: Runde Tablette: 11mm, unregelmäßiges Tablet: 13mm
Maximale Tiefe: 15 mm Max -Tablet -Dicke: 6 mm
Max Turmgeschwindigkeit: 60 r/min Gesamtgröße: 1420*1200*1850 mm
Maschinengewicht: 3500 kg Turmmaterial: HT300 & 2CR13
Hauptmotor: 11 kW (ABB)
Hervorheben:

65 Stations Rotary Tablet Press

,

40kN Pre-Pressure High Speed Tablet Press

,

11kW Motor Power Pharmaceutical Tablet Press

Fully Automatic Lubrication System High Speed Tablet Press with Force Feeder
High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 0
Product Overview

The GZP570-65 High Speed Rotary Tablet Press Machine is a double-side rotary tablet press designed to press granular materials into round, irregular, or double-side engraved tablets. Ideal for pharmaceutical, chemical, foodstuff, and electronic industries.

Key Features
  • Advanced pressure system with double pressure forming (main pressure and pre-pressure) for precise tablet weight and hardness control
  • High-speed turret operation with maximum output of 450,000 tablets per hour
  • Precision pressure monitoring system with emergency stop protection
  • Automatic lubrication system for reduced noise and extended component life
  • Programmable controller with color touch screen interface for intuitive operation
  • Comprehensive safety protection functions including pressure overload and door interlock
  • Stable forced feeding device with double impeller feeding plate for consistent material flow
  • High-strength frame structure with 100KN main pressure capacity
  • Premium material construction including military-grade copper track and Japanese-cast components
  • Precision machining of critical components for optimal performance
  • High-precision worm gear box for smooth, quiet operation
  • Special lubricating oil chamber for reduced wear on punch rods
Technical Specifications
Model GZP-65
Number Stations 65
Tooling Standard BBS
Max Main Pressure (KN) 100
Max Pre-pressure (KN) 40
Max Tablet Diameter (mm) Round Tablet: 11 | Irregular Tablet: 13
Max Filling Depth (mm) 15
Max Tablet Thickness (mm) 6
Max Turret Speed (r/min) 60
Max Production Capacity (pcs/h) 468,000
Motor Power (kw) 11
Overall Size (mm) 1420×1200×1850
Machine Weight (kg) 3500
System Components
High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 1
Delta 10 inch Color Touch Screen
  • Displays real-time working pressure, rotating speed, output counter
  • 3-level management authority
  • Electronic signature CFR21 compliant
  • Remote access capability
  • Single value pressure display
  • Formula management system
  • Handwheel-free operation with intuitive interface
High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 2
Electrical System

Utilizes international brand components including Delta and Schneider for reliable performance.

High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 3
Main Motor
  • Powerful 11kw ABB motor
  • High-precision reducer for stable torque output
High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 4
Automatic Lubrication System

Dual lubrication system with oil for punches and tracks, and grease for shafts and bearings.

High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 5
Turret Structure
  • Three-part structure design
  • HT300 & 2Cr13 materials with hardened surface layer
  • Upper punch with oil catch ring and dust proof ring
  • Lower punch with dust proof ring
  • Fully enclosed working turret
High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 6
Force Feeder System

Directly mounted on main body for stability, featuring double blade wheel feeding disc for strong material adaptability and consistent powder filling.

High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 7
Force Feeder Hopper

Special hopper design with rotary valve for precise powder flow control.

Packaging & Shipping
High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 8
  • Export-standard wooden packaging included
  • Delivery within 15-45 working days
  • Multiple shipping options: SEA, AIR, and EXPRESS
After Sales Service
  • Installation services available with all new machine purchases
  • On-site engineer support for setup and operation
  • Comprehensive technical support and training
Certifications
High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 9
Company Profile
High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 10

Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. is an innovative manufacturer and total-solution supplier for pharmaceutical processing machines and packaging equipment with over 30 years of experience, exporting to more than 70 countries.

As a high-technology enterprise, we handle all processes from casting to metal machining and final assembly. We are committed to quality control and customer satisfaction, offering customized solutions based on detailed requirements analysis.
