TIANHE 8 Stations D Candy, Milk, Cheawable, Effervescent Rotary Tablet Press Machine

TIANHE 8 Stations D Candy, Milk, Cheawable, Effervescent Rotary Tablet Press Machine Brief Introduction:

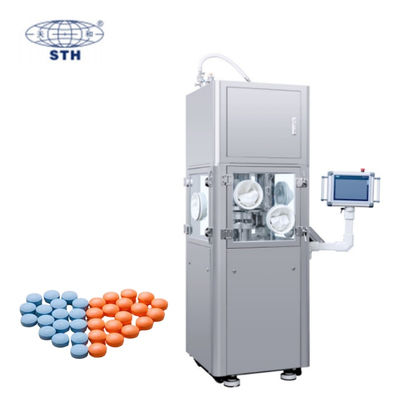

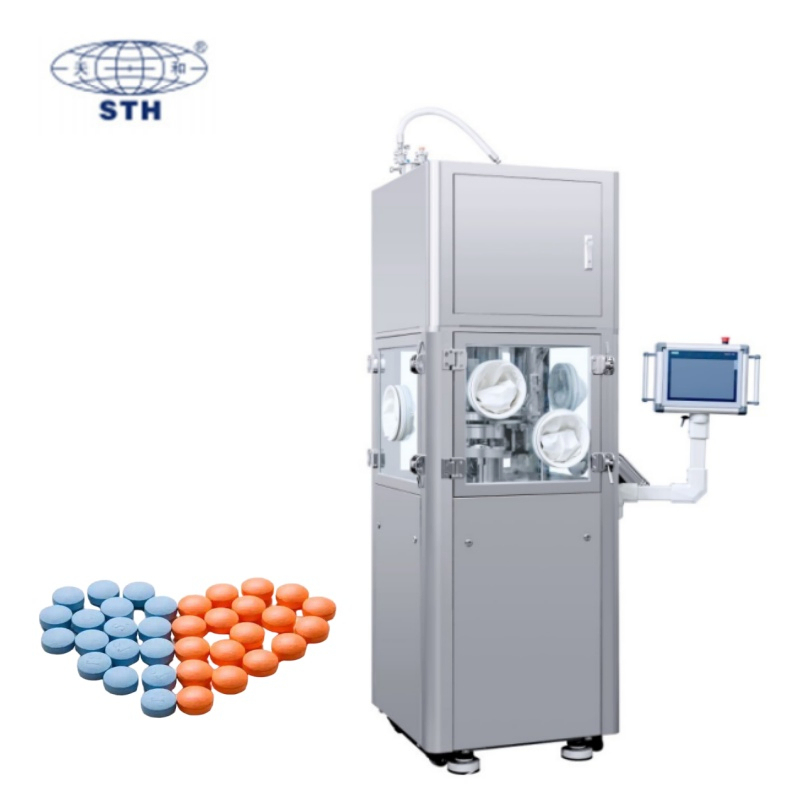

ZPIL-230 series model ZPIL-8 full-closed type rotary tablet press is a new type of tablet press machine recently developed by our company, it is suitable for the production of highly sensitized tablets.

This machine is a rotary type tablet press which uses physical methods to create isolated environment (for tablets working area) to improve the separation level between the internal and external.
Physical separation devices include rigid and flexible barriers.
Pneumatic means include air flow and filtration.
The isolator is designed for the system working under the negative pressure relative to the environment, which conforms to ISO4 leakage test standard and ISO10648-2:1994 standard (closed classification and its inspection method).
The design of the isolation device conforms to the ergonomics, and the working area is easy to access and operate.

The design and development of isolator mainly consider the following functions:
- A barrier is formed between the isolation chamber and the surrounding environment;
- The tablet production of this tablet press is completely carried out in the isolator;
- The largest area of glass area to provide the best view, convenient operation;
- Large circular glove port, reducing the interface and working strength;
- Ensure the negative pressure mechanism in the isolation room;
- Ensure that potential contaminants are isolated in the isolator;

Ventilation and filtration system:
Special ventilation system shall be adopted for the isolator to ensure the air is discharged from the chamber under negative pressure to the safety chamber.In general, the main working chamber will be under negative pressure to ensure a proper level of safety. Therefore, a special control system is needed to keep the pressure in the controlled and maintained chamber at a constant negative value. According to the actual needs of the operator, compressed air or nitrogen can be used for ventilation. For safety reasons, high efficiency filters are installed at the inlet and outlet of the main working chamber filtration system.
- Working negative pressure of isolator chamber - 40Pa ~ - 80pa;
- Add mechanical seal or gas seal at the bearing cover at both ends of the pressing wheel to prevent water from entering the bearing;
- The roller frame structure is of the pedestal pile type, which is located on the middle plate, which can increase the pressure and facilitate cleaning;
- The lower guide rail adopts the side installation type;
- Grid feeder is adopted for easy cleaning;
- The filling structure is of pedestal pile type, which is located on the middle plate for easy cleaning;
- The thickness and filling are adjusted by motor, and the actuator and motor are in two different areas;

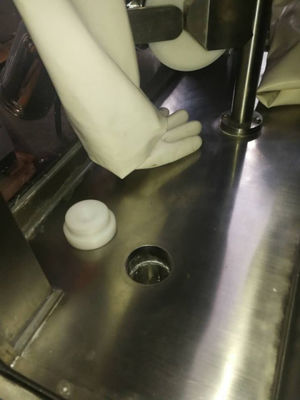

- A lower nozzle is arranged at the middle plate to collect the cleaning waste water;

Workflow
- Open the isolator door of the tablet press, and connect the sealed material barrel (5kg) with the hopper of the tablet press;
- Close the isolator door of the tablet press, open the ventilation and filtering system of the tablet press, and maintain the negative pressure in the tablet press room;
- Open the α. β valve to let the freeze-dried granulated particles enter the hopper of the tablet press;
- Using grid feeder to fill the medium mold cavity with particles (using grid feeder to facilitate cleaning);
- Adjust the tablet pressing parameters to obtain qualified tablets, and then enter the normal production state;
- The pressed tablets are stored in the tablet register; (or transported vertically into the coating machine)
- According to the tablet pressing speed, the vacuum feeder which can be cleaned on line is opened to transport the tablet directly to the coating machine;
- After the completion of all production, use the air gun to blow out the dust from the upper and lower guide rails of the tablet press which are difficult to clean;
- Use water gun to clean all parts of tablet press that need to be cleaned;
- The waste water generated from cleaning is led into the waste water collection tank through the drainage outlet;

Cleaning and waste water collection system
The system is a manual cleaning. In the isolation system, an air gun and a water gun (shared) are set. The parts to be cleaned are operated by gloves. The waste water generated by cleaning is led into the waste water collection tank through the drainage port, and a butterfly valve is set at the population of the waste water tank.

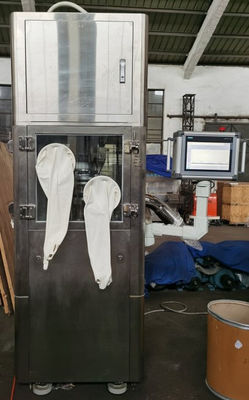

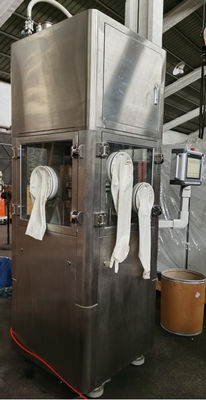

The main feature of ZPIL-230 series model ZPIL-8 closed laboratory rotary tablet press is that the tablet chamber is a fully-closed environment,

1. Reliable sealing and dust-proof system design, the working room maintains negative pressure when pressing the tablet, and its pressure difference can be continuously monitored and alarmed to ensure the safety of the operator.
2. The structure of the pressing chamber is relatively simple, convenient for disassembly and cleaning.
3. From feeding to tablet pressing, sampling and tablet discharging are all completed in closed state.
4. The operator can clean the pressing chamber with the compressed air spray gun and water gun arranged in the pressing chamber through the glove box.
5. With waste water collection system.
6. Adopt man-machine interface, PLC program control, convenient operation.
7. It has the functions of automatic display of faults, automatic alarm and shutdown.
8. Password login, permission setting, in accordance with 21CFR Part 11.
9. It has the display of main pressure, filling depth, tablet thickness, working output, etc.
10. After lactose leakage test, the leakage OEL value is less than 1 μ g / m3 within the specified time, and the leakage level can reach OEB5 class.

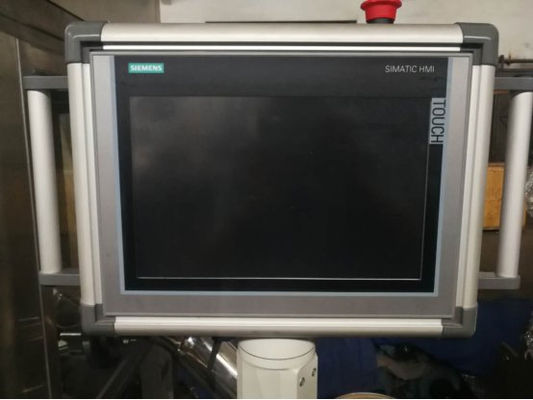

	Siemens 12 inch color touch screen (Display Chinese,English or other languages) Display real-time working pressure, rotating speed, output counter and other data. 3-level management authority. Electronic signature   CFR21 Remote access . Single value pressure display .
	All the electrical parts adopt international brand.
	Main motor and gearbox

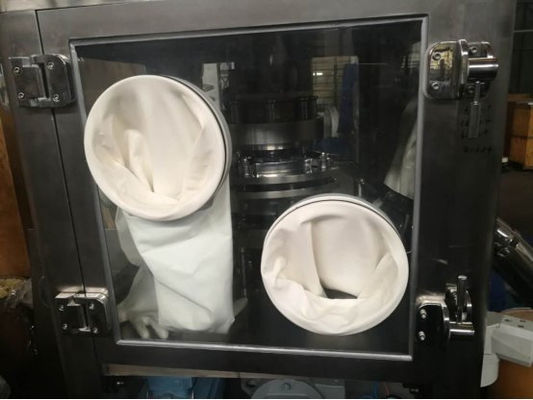

	Glove box
	Door Seal
	Special α. β valve (charge point valve )
	Ventilation and filtration system
	Water washing gun
	Auto-valve for air inlet control with HEPA filter
	Auto-valve for air exhaust control with HEPA filter
	Differential pressure gauges
	Drain for waste water
	Motor for auto tablet weight control
	Punches & dies( Customization according to customer's requirements)   We can make it all kinds of punches and dies,such as round,irregular,shallow concave,deep concave,bevel edged,detachable,single tipped,multi tipped,chrome plated or carbide ones. Material(optional): S7/D2,DC53, 6CrW2Si,GCr15 etc. 3.It adapt D Tooling standard

Samples

1. Wooden packaging meets export packaging standards.
2. Packaging is free of charge.
3. The delivery time is 15-45 working days.
4.The transportation methods can be SEA,AIR and EXPRESS.


Q: Where is your factory?How can I visit your factory?
A: Our factory is located in Shanghai, Chongming District.
     Warmly welcome you to visit our factory if you have a travel plan.

Q: How can I know your machine is designed for my product?
A: If you don't mind,you can send us samples and we will test on machines.
     During that time,we will take videos and cleaner pictures for you.We can also show you on-line by video chatting.

Q: How can I trust you for the first time business?
A: Please note our business license and  certificates above .If you don't trust us.we suggest using Trade Assuran Serivce for all
     transactions to protect your money and assure our serivce for you.

Q: How about the after serivce and guarantee period?
A:  We offer 1 year warranty.Technical support reply is available with 24 hours.We have professional team with experienced technician
     to serve abroad and do the best after service to assure the machine whole life usage.

Q: How to contact you?
A: Please find the contact information on this page,you can contact us by Email,Wechat,Whatsapp and phone etc.


Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. Is the innovative leading manufacturer and professional total-solution supplier for pharmaceutical processing machines, packaging equipments and related service in Pharmaceutical & Food industry over 30 years and exported over 70 countries.

We are a high-technology enterprise, all tasks from casting to metal machining and general assembly are accomplished by ourselves. We are dedicating ourselves to reinforce quality control and satisfactory service. We can supply the most suitable products to our clients based on detailed URS analysis and mutual communication.

All machine in our factory can be customized depending on your requirements,We have successful experience design machines according to customer's requirement. The machine absorbing advanced technology in the world, is the new generation of the automatic filling and sealing machine. It has the characters like Omron PLC control,reasonable design, compact structure, beautiful appearance, stable and reliable performance, high filling accuracy, adaptability, simple operation, easy maintenance, cleaning and convenient.
