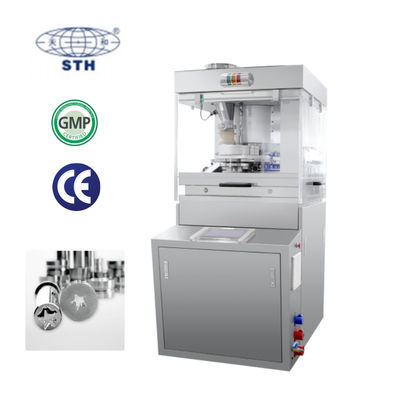

32 Stations High Speed Rotary Tablet Press with 100kN Pressure and 192000 PCS/H Capacity for Pharmaceutical Industry

China 32 Stations High Speed Rotary Tablet Press with 100kN Pressure and 192000 PCS/H Capacity for Pharmaceutical Industry fournisseur
32 Stations High Speed Rotary Tablet Press with 100kN Pressure and 192000 PCS/H Capacity for Pharmaceutical Industry fournisseur 32 Stations High Speed Rotary Tablet Press with 100kN Pressure and 192000 PCS/H Capacity for Pharmaceutical Industry fournisseur 32 Stations High Speed Rotary Tablet Press with 100kN Pressure and 192000 PCS/H Capacity for Pharmaceutical Industry fournisseur 32 Stations High Speed Rotary Tablet Press with 100kN Pressure and 192000 PCS/H Capacity for Pharmaceutical Industry fournisseur 32 Stations High Speed Rotary Tablet Press with 100kN Pressure and 192000 PCS/H Capacity for Pharmaceutical Industry fournisseur 32 Stations High Speed Rotary Tablet Press with 100kN Pressure and 192000 PCS/H Capacity for Pharmaceutical Industry fournisseur

Großes Bild :  32 Stations High Speed Rotary Tablet Press with 100kN Pressure and 192000 PCS/H Capacity for Pharmaceutical Industry

Produktdetails:

Zertifizierung: CE, GMP, ISO, EAC

Zahlung und Versand AGB:

Min Bestellmenge: 1
Preis: 30000
Kontakt
Ausführliche Produkt-Beschreibung
Modellnummer: GZPK-32 Maschinenmaterial: Kohlenstoffstahl, Edelstahl
Zahlenstationen: 32 Max Hauptdruck: 100 kN
Max-Vordruck: 100 kN Maximale Produktionskapazität: 192000 PCs/h
Motorleistung: 11 kW Max -Tablettendurchmesser: 18 mm (Runde), 19 mm (unregelmäßig)
Maximale Tiefe: 16 mm Max -Tablet -Dicke: 6 mm
Max Turmgeschwindigkeit: 100 R/Min. Gesamtgröße: 1380*1200*1900 mm
Maschinengewicht: 1750 kg Steuerungssystem: SPS und Touchscreen
Schmiersystem: Automatisches Schmiersystem
Hervorheben:

32 Stations Rotary Tablet Press

,

100kN Pressure Pharmaceutical Tablet Press

,

192000 PCS/H Capacity Tablet Compression Machine

GZPK-32 High Speed Rotary Tablet Press Machine with Weight Detection
32 Stations High Speed Rotary Tablet Press with 100kN Pressure and 192000 PCS/H Capacity for Pharmaceutical Industry 0 32 Stations High Speed Rotary Tablet Press with 100kN Pressure and 192000 PCS/H Capacity for Pharmaceutical Industry 1
Product Description
This single-sided press type rotary tablet press machine transforms granular materials into round, irregular, or double-side engraved tablets. Designed for pharmaceutical, chemical, food, and electronic industries, it meets GMP requirements.
Key Features
  • Constructed with stainless steel and fully enclosed housing for GMP compliance
  • PMMA protective cover with stainless steel door frames for durability
  • Frequency inverter-controlled speed with stable motor mounting
  • Automatic oil & grease central lubrication system for extended machine life
  • Hydraulic overload protection to prevent punch damage
  • High-precision pressure sensor with self-checking functions
  • Advanced tablet weight control system with batch rejection capability
  • Customizable impellers for different material requirements
Technical Specifications
Model GZPK-32
Number Stations 32
Tooling Standard B
Max Main Pressure (KN) 80
Max Pre-pressure (KN) 20
Max Tablet Diameter (mm) Round: 18 | Irregular: 19
Max Filling Depth (mm) 16
Max Tablet Thickness (mm) 6
Max Turret Speed (r/min) 100
Max Production Capacity (pcs/h) 192,000
Motor Power (kw) 7.5
Overall Size (mm) 1380×1200×1900
Machine Weight (kg) 1750
Detailed Features
32 Stations High Speed Rotary Tablet Press with 100kN Pressure and 192000 PCS/H Capacity for Pharmaceutical Industry 2
Delta 10 inch Color Touch Screen
  • Displays real-time working pressure, rotating speed, and output counter
  • 3-level management authority
  • Optional remote access capability
  • Single value pressure display
  • Formula management system
  • Optional electronic signature functionality
  • Handwheel-free operation with rich interface
32 Stations High Speed Rotary Tablet Press with 100kN Pressure and 192000 PCS/H Capacity for Pharmaceutical Industry 3
Main Pressure & Pre-pressure System
  • High pressure structure with 100KN capacity for both main and pre-pressure
  • Ideal for powder direct pressing or difficult-to-form materials
  • Servo motor-controlled automatic adjustment via touch screen
  • Pressure sensors provide real-time monitoring and over-pressure protection
32 Stations High Speed Rotary Tablet Press with 100kN Pressure and 192000 PCS/H Capacity for Pharmaceutical Industry 4
Electrical System
  • Utilizes international brand components (Delta, Schneider, etc.)
  • 11KW ABB brand motor for reliable performance
32 Stations High Speed Rotary Tablet Press with 100kN Pressure and 192000 PCS/H Capacity for Pharmaceutical Industry 5
Automatic Lubrication System
  • Dual lubrication system for optimal machine maintenance
  • Oil lubrication for punches and tracks
  • Grease lubrication for shafts and bearings
32 Stations High Speed Rotary Tablet Press with 100kN Pressure and 192000 PCS/H Capacity for Pharmaceutical Industry 6

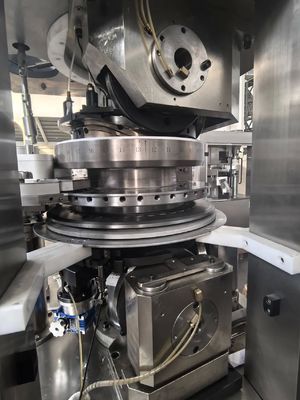

Turret Structure
  • Three-part construction using HT300 & 2Cr13 materials
  • Hardened surface layer for wear resistance
  • Upper punch with oil catch ring and dust proof ring
  • Lower punch with dust proof ring
  • Fully enclosed working turret design
32 Stations High Speed Rotary Tablet Press with 100kN Pressure and 192000 PCS/H Capacity for Pharmaceutical Industry 7

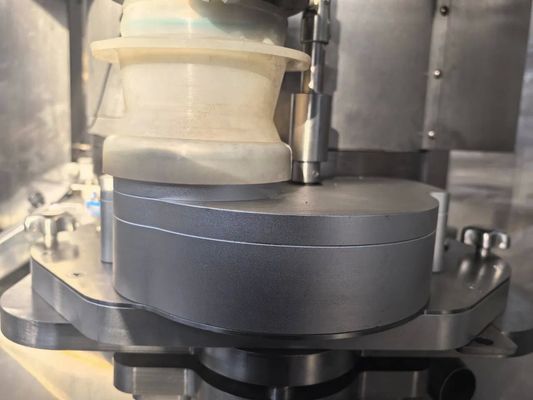

Force Feeder System
  • Three-paddle type force feeder for improved material flow
  • Stainless steel hopper (SS316L) with 15L capacity
  • Powder level sensor and adjustable flow valve
  • Food grade silicone connection sleeve
32 Stations High Speed Rotary Tablet Press with 100kN Pressure and 192000 PCS/H Capacity for Pharmaceutical Industry 8
Punch Protection System
  • Upper & lower punch tightness protection sensors
  • Automatic shutdown when powder sticks to punches
  • Servo motor control for consistent tablet weight
32 Stations High Speed Rotary Tablet Press with 100kN Pressure and 192000 PCS/H Capacity for Pharmaceutical Industry 9
Tablet Rejection System
  • Online pressure detection with automatic weight adjustment
  • Batch or individual tablet rejection capability
32 Stations High Speed Rotary Tablet Press with 100kN Pressure and 192000 PCS/H Capacity for Pharmaceutical Industry 10
Punches & Dies
  • TSM-Tooling standard compatibility
  • Customizable for various shapes and requirements
  • Material options: S7/D2, DC53, 6CrW2Si, etc.
Packaging & Shipping
32 Stations High Speed Rotary Tablet Press with 100kN Pressure and 192000 PCS/H Capacity for Pharmaceutical Industry 11
  • Export-standard wooden packaging included
  • 15-45 working days delivery time
  • Multiple transportation options: SEA, AIR, and EXPRESS
After Sales Service
  • Installation services available with all new machine purchases
  • On-site engineer support for setup and operation
  • Comprehensive technical support and training
Certifications
32 Stations High Speed Rotary Tablet Press with 100kN Pressure and 192000 PCS/H Capacity for Pharmaceutical Industry 12
Our Exhibition
32 Stations High Speed Rotary Tablet Press with 100kN Pressure and 192000 PCS/H Capacity for Pharmaceutical Industry 13
Company Profile
32 Stations High Speed Rotary Tablet Press with 100kN Pressure and 192000 PCS/H Capacity for Pharmaceutical Industry 14
Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. is an innovative manufacturer and total-solution supplier for pharmaceutical processing machines and packaging equipment with over 30 years of experience. Our products are exported to over 70 countries. As a high-technology enterprise, we handle all processes from casting to final assembly, ensuring quality control and customized solutions based on customer requirements.
